MainStage Mondays: Creating A Cross Fader

MainStage Mondays: Creating A Cross Fader

DJ’s regularly use cross faders to adjust the volume of two sound sources simultaneously (i.e. fade out one track while fading in another track). There are several really useful ways to use a crossfader as a keyboardist- probably my favorite is adjusting the volume balance between two channel strips (a piano and a pad, for instance). Here’s how to do it:

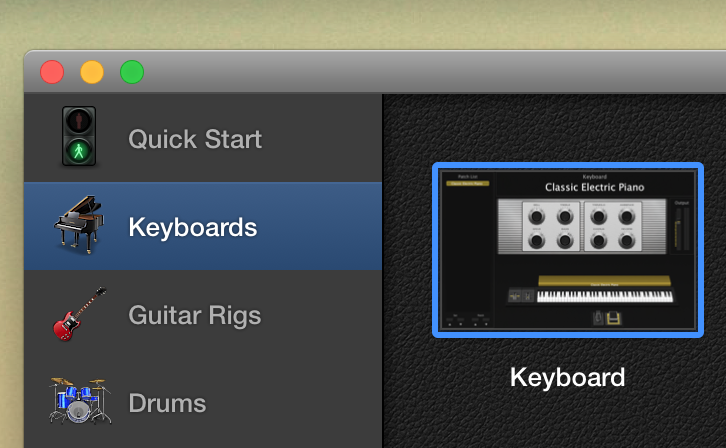

1. Open MainStage. Select a template.

Screen Shot 2016-06-06 at 6.23.00 PM.png


2. Go to the Layout mode by using command-1.

Screen Shot 2016-07-18 at 12.17.24 PM.png

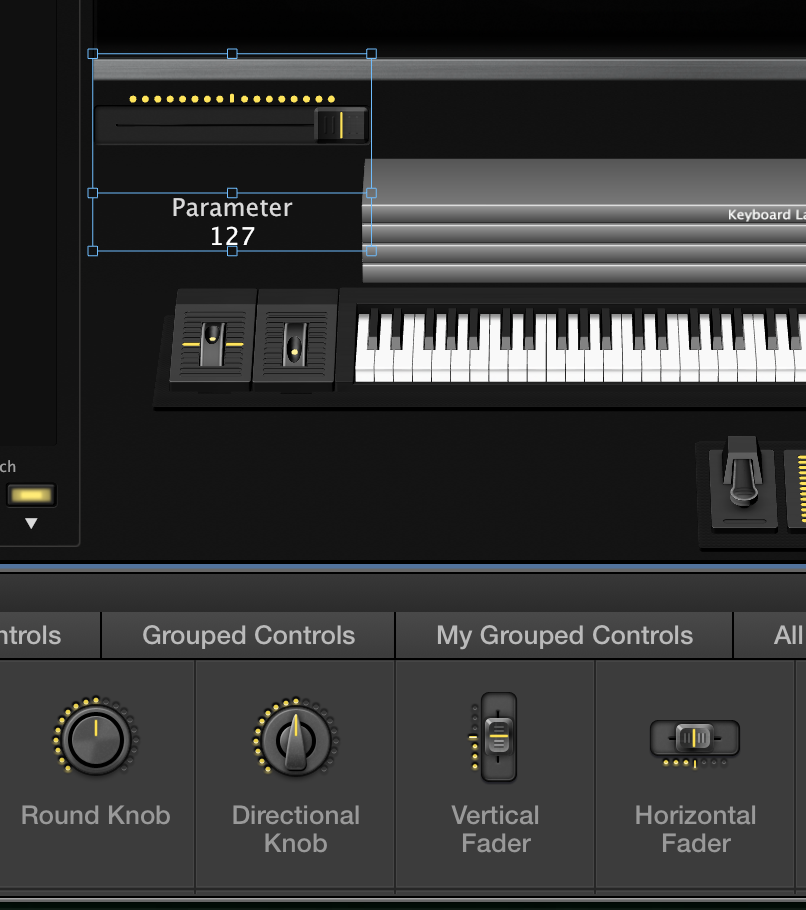

3. Drag in a horizontal fader.

Screen Shot 2016-07-18 at 12.17.35 PM.png

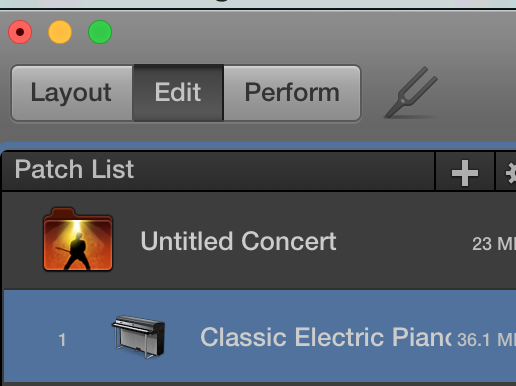

4. Go back to the Edit mode using command-2.

Screen Shot 2016-07-18 at 12.18.09 PM.png


5. Add a second channel strip using the plus button on the RH side of the channel strip window and select a preset.


6. Click on the horizontal fader, then clickthe Assign and Map button.

Screen Shot 2016-07-18 at 12.20.47 PM.png

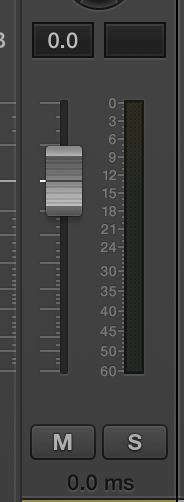

7. Click on the channel strip’s volume button.


8. Click on the + button in the Screen Control Inspector, and then repeat step 6 with the volume fader on channel strip 2.

Screen Shot 2016-07-18 at 12.22.08 PM.png


9. Click on “Invert Parameter Range” on the 2nd mapping.

Screen Shot 2016-07-18 at 12.22.28 PM.png


Assign the onscreen fader to a midi controller, and you’re good to go.


Need help with MainStage? I offer one-on-one online training here
